Nuitrack Unity: Problem with Intel RealSense D455 and 2160x3840 portrait resolution

1

I’m developing a virtual fitting room app in Unity using the Nuitrack SDK and an Intel RealSense D455 camera. My target resolution is 2160x3840.

To match this, I set my canvas resolution and adjusted the Nuitrack aspect ratio filter to 0.55. This successfully stretched the raw image to fill the height of my canvas, but when I run the project, the camera feed is still being displayed in a landscape format, appearing windowed with black bars. What am I missing to get the feed to fill the entire screen?"

2

Hello @johnson

You need to rotate the sensor and select the appropriate sensor rotation on the Nuitrack Manager component.

3

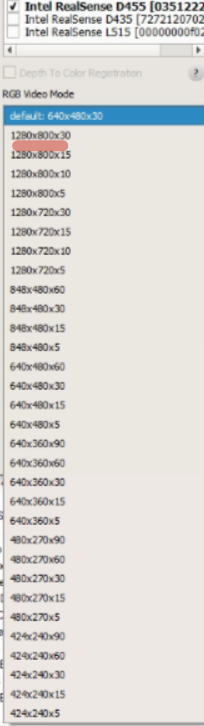

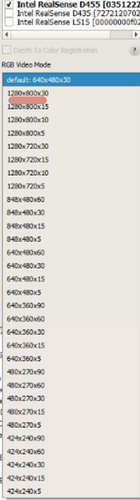

Please also note that the list of actual resolutions for the D455:

image204×726 86 KB

4

hi @Stepan.Reuk. Thanks We are planning to buy the sdk. But we are still not sure whether to go for it. because the overlay is not that accurate, it is not exactly sitting on the user, it is just in front of the user.
